P系列-5406-P
發(fā)布日期：2024-01-16 瀏覽次數(shù)：1074

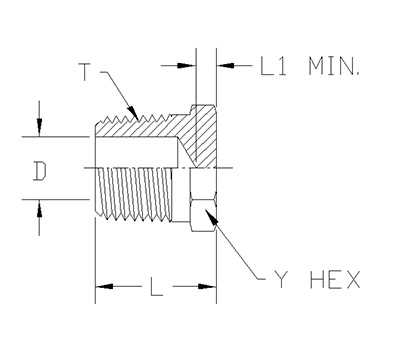

| ITEM | P/N | Y HEX | D | T | L | L1 MIN. |
| 1 | 5406-P-02 | 0.438 | 0.160 | 1/8-27 NPTF | 0.59 | 0.12 |
| 2 | 5406-P-04 | 0.562 | 0.250 | 1/4-18 NPTF | 0.77 | 0.12 |
| 3 | 5406-P-06 | 0.688 | 0.380 | 3/8-18 NPTF | 0.80 | 0.16 |
| 4 | 5406-P-08 | 0.875 | 0.500 | 1/2-14 NPTF | 0.99 | 0.16 |
| 5 | 5406-P-12 | 1.062 | 0.690 | 3/4-14 NPTF | 1.08 | 0.19 |
| 6 | 5406-P-16 | 1.375 | 0.880 | 1-11-1/2 NPTF | 1.36 | 0.19 |
| 7 | 5406-P-20 | 1.750 | - | 1-1/4-11-1/2 NPTF | 1.468 | - |
| 8 | 5406-P-24 | 2.000 | - | 1-1/2-11-1/2 NPTF | 1.57 | - |
| 9 | 5406-P-32 | 2.500 | - | 2-11-1/2 NPTF | 1.75 | - |
